10KV level Epoxy Resin Cast Dry Type Transformer SC(B)、SC(B)11-30~2500
As the coil is cast by epoxy resin,so it is non-flammable,fire resistant,anti-explosive,maintenance free,pollution free,and can be installed in loading center directly. Why Dry Transformers?
Safe and Environment friendly Products
1. Reduce environment pollution
2. Zero leakage risk of oil or pollutants
3. Non flammable,self extinguishing
4. Strong anti short circuit ability
5. Strong seismic ability
6. Less space required
7. Strong overload ability
8. Maintenance free
EEC’s dry type transformers are in conformity with the following standards:
1. National Standard of China GB1904.11-2007”Power Transformers”
2. International Electro Technical Commission Standards IEC 60076-11”2004 “Dry Type Transformers”
3. German Industry Standard DIN EN 60076-11:2005 “Dry Type Transformers”
Product Features In virtue of the coils sealed by epoxy resin, this series of products is fire retardant, fireproof, and explosion-proof and it possesses properties including maintenance-free, non-contamination, and small volume. It can be assembled at the load center directly. Besides, due to its scientific and reasonable design and casting process, the product has small quantity of partial discharging, low noise, strong heat dissipation capability and it is able to run for a long time with 140% rated load under the forced air cooling condition. In addition, this product is equipped with intelligent temperature controller that can achieve centralized monitoring and control.

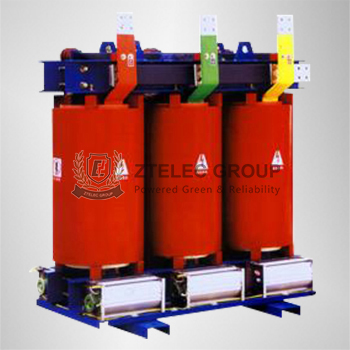

Latest Development: latest trend and latest product 1. EEC SG15 Transformer is one series of excellent products with higher insulation and heat resistant level(H Class).It provides you longer insulation life and higher overload capacity,and it adapts the most optimum design for higher energy efficiency grade. 2. EEC Hi-Dry Transformers,this new type high efficient products was made from elaborate design,it has lower loss rate and excellent efficiency, and it is the ideal choice for customers who need to evaluate the overall environmental influences and total running cost.

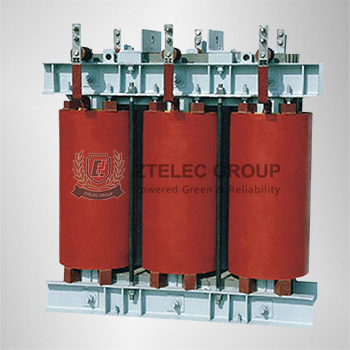

10KV level Epoxy Resin Cast Dry Type Transformer SC(B)、SC(B)11-30~2500
| Rated High Voltage: 10(11,10.5,6.6,6.3,6 KV) Rated Low Voltage:0.4KV Insulation Level: L175AC35 / L10AC3 Connection Group: Dyn11 or Yyn0 Tapping Range: ±2×2.5% or ±5% |
|||||||||
| Rated Capacity (KVA) |
Short Circuit Resistance (%) |
SC(B)10 | SC(B)11 | Noise Level (dB) |
Weight (Kg) |
||||
| No Load Loss (W) |
Load Loss 120℃ (W) |
No Load Current (%) |
No Load Loss (W) |
Load Loss 120℃ (W) |
No Load Current (%) |
||||
| 30 | 4 | 190 | 710 | 2.4 | 170 | 710 | 2.4 | 44 | 220 |
| 50 | 270 | 1000 | 2.4 | 250 | 1000 | 2.4 | 44 | 320 | |
| 80 | 370 | 1380 | 1.8 | 330 | 1380 | 1.8 | 45 | 460 | |
| 100 | 400 | 1570 | 1.8 | 360 | 1570 | 1.8 | 45 | 580 | |
| 125 | 470 | 1850 | 1.6 | 420 | 1850 | 1.5 | 46 | 750 | |
| 160 | 540 | 2130 | 1.6 | 490 | 2130 | 1.4 | 46 | 780 | |
| 200 | 620 | 2530 | 1.4 | 560 | 2530 | 1.3 | 47 | 850 | |
| 250 | 720 | 2760 | 1.4 | 650 | 2760 | 1.2 | 48 | 1030 | |
| 315 | 880 | 3470 | 1.2 | 790 | 3470 | 1.1 | 48 | 1060 | |
| 400 | 980 | 3990 | 1.2 | 880 | 3990 | 1 | 49 | 1400 | |
| 500 | 1160 | 4880 | 1.2 | 1040 | 4880 | 1 | 49 | 1550 | |
| 630 | 1340 | 5880 | 1 | 1210 | 5880 | 0.9 | 49 | 1820 | |
| 630 | 6 | 1300 | 5960 | 1 | 1170 | 5960 | 0.9 | 50 | 1850 |
| 800 | 1520 | 6960 | 1 | 1370 | 6960 | 0.8 | 51 | 2150 | |
| 1000 | 1770 | 8130 | 1 | 1590 | 8130 | 0.7 | 52 | 2550 | |
| 1250 | 2090 | 9690 | 1 | 1880 | 9690 | 0.6 | 53 | 3020 | |
| 1600 | 2450 | 11730 | 1 | 2210 | 11730 | 0.6 | 54 | 4500 | |
| 2000 | 3050 | 14450 | 0.8 | 2750 | 14450 | 0.5 | 55 | 5300 | |
| 2500 | 3600 | 17170 | 0.8 | 3240 | 17170 | 0.4 | 56 | 6200 | |
