Amorphous alloy dry-type transformer product description：

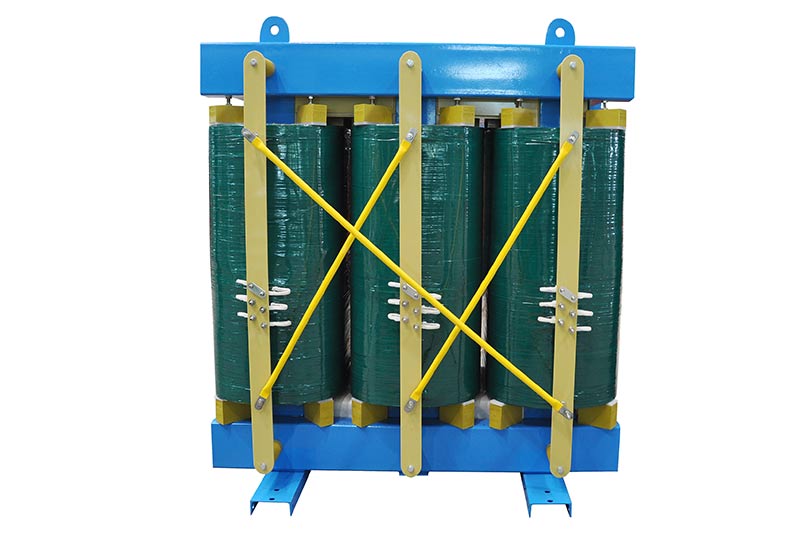

The SCBH15 series amorphous alloy dry-type transformer is a transformer made of amorphous alloy material. The metal atoms in amorphous alloy material are arranged in a disordered amorphous state, resulting in reduced core losses compared to silicon steel material. It achieves high efficiency and energy-saving effects, with approximately 70% lower no-load losses than traditional silicon steel core transformers. It is currently an ideal low-loss and energy-saving transformer.
Product Features of Amorphous Alloy Dry Type Transformer：
1.High Efficiency, Energy-saving, High Energy Efficiency:
Amorphous alloy dry-type transformers meet energy-saving and environmental requirements and achieve high energy efficiency ratings.
2.Fire Safety, Oil-free Insulation, High Fire Resistance:
Amorphous alloy dry-type transformers eliminate the need for oil as insulation, reducing the risk of fire hazards and ensuring enhanced safety and reliability.
3.Lightweight, Compact, and Flexible Installation:
Suitable for various applications, particularly in limited space environments.
4.High Temperature Resistant, Adaptability to Harsh Environments, High Reliability:
Exhibiting excellent thermal stability, dry-type transformers can operate efficiently in high-temperature environments and withstand harsh industrial conditions, offering high reliability.
5.Silent Operation, Noise-free, Provides a Good Working Environment:
Dry-type transformers operate silently without the need for cooling fluids, creating a quieter and more comfortable working environment.
6.Longevity, Corrosion Resistance, Low Maintenance Costs:
Dry-type transformers have a long lifespan, low maintenance requirements, reducing the frequency of maintenance and replacement, and saving on repair costs.
Technical Parameters:
| Rated capacity KVA |
Voltage group | vector group |
Loss (W) | No-load curren(%) |
Impedance voltage (%) |
Boundary dimension (L×W×H,mm) |
Gauge | Weight(kg) | ||
| HV (kV) | LV (kV) | No-load loss(W) | Load loss75℃ | Longitudina transverse (mm) |
||||||
| 100 | 11
10.5 10 6.3 6 |
0.4 | dyn11 | 130 | 1570 | 1.2 | 7 | 950×600×960 | 550×550 | 890 |
| 160 | 170 | 2130 | 1.1 | 1220×600×1060 | 550×550 | 1170 | ||||
| 200 | 200 | 2530 | 1 | 1270×710×1160 | 660×660 | 1400 | ||||
| 250 | 230 | 2760 | 1 | 1350×760×1240 | 660×660 | 1560 | ||||
| 315 | 280 | 3470 | 0.9 | 1370×870×1360 | 820×820 | 1770 | ||||
| 400 | 310 | 3990 | 0.8 | 1460×870×1360 | 820×820 | 2180 | ||||
| 500 | 360 | 4880 | 0.8 | 1490×870×1430 | 820×820 | 2440 | ||||
| 630 | 420 | 5880 | 0.7 | 1760×1120×1490 | 1070×1070 | 2850 | ||||
| 630 | 410 | 5960 | 0.7 | 6 | 1710×970×1450 | 1070×1070 | 3015 | |||
| 800 | 480 | 6960 | 0.7 | 1850×1120×1600 | 1070×1070 | 3430 | ||||
| 1000 | 550 | 8130 | 0.6 | 1900×1120×1170 | 1070×1070 | 4050 | ||||
| 1250 | 650 | 9690 | 0.6 | 2030×1120×1880 | 1070×1070 | 4690 | ||||
| 1600 | 760 | 11730 | 0.6 | 2120×1120×1970 | 1070×1070 | 5610 | ||||
| 2000 | 1000 | 14450 | 0.5 | 2120×1120×1990 | 1070×1070 | 5820 | ||||
| 2500 | 1200 | 17170 | 0.5 | 2190×1120×2110 | 1070×1070 | 6730 | ||||
Note: If needed, our company can design and produce according to customer requirements. Please contact us promptly for further assistance.
Application areas：
1.Renewable Energy:
Amorphous alloy dry-type transformers are widely used in solar and wind power generation systems to convert the generated current into grid-compatible electricity.
2.Building and Infrastructure:
Amorphous alloy dry-type transformers play a key role in large buildings, commercial centers, and urban infrastructure, facilitating power distribution and supply.
3.Industrial Manufacturing:
Amorphous alloy dry-type transformers are suitable for various industrial sectors such as steel, chemical, pharmaceutical, and automotive manufacturing, providing power supply and equipment operation.
4.IT and Telecommunications:
Amorphous alloy dry-type transformers are extensively applied in data centers, communication base stations, and network equipment to ensure stable power supply and equipment operation.
5.Medical and Pharmaceutical:
Amorphous alloy dry-type transformers play a vital role in medical facilities and pharmaceutica
