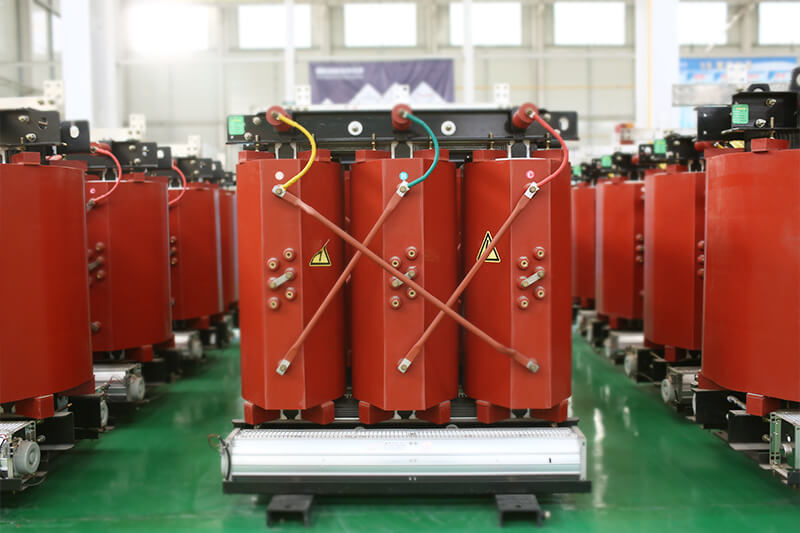

dry type transformer

Transformer Manufacturer

Product category: Dry type transformer
kVA capacity range: ≤6300KVA
Voltage range: ≤35kV
Compliant with IEC standards
Customizable solutions available according to customer requirements.

Product Description:

The dry type transformers in this series are used to directly step down the 35kV power supply from the grid to a 400V distribution power supply for users. This reduces the need for a 10kV substation, resulting in significant cost savings and a reduction in the construction of multi-level substations. It offers remarkable social benefits. The product achieves this by optimizing the high voltage coil structure, improving the distribution of interlayer voltage and capacitance. This greatly enhances the product’s ability to withstand atmospheric and operational overvoltage shocks. Additionally, it improves the distribution of electric fields, further reducing partial discharge levels.

Features:

1.Low operating costs

2.Safe, flame retardant, and pollution-free

3.Excellent moisture resistance, capable of operating normally under 100% humidity

Technical Parameters:

Rated
capacity
KVA
Voltage group Vectoe
group
Impedance
voltage (%)
SC(B)10
HV (kV) Tap range LV (kV) No-load loss(W) Load loss120℃(W) No-load curren(%)
50 33

35

38.5

±2×2.5% 0.4 Yyn0
or
Dyn11
6 450 1420 2.3
100 680 2090 2
160 790 2810 1.5
200 880 3325 1.5
250 990 3800 1.3
315 1170 4510 1.3
400 1370 5410 1.1
500 1520 6650 1.1
630 1860 7690 1
800 2160 9120 1
1000 2430 10400 0.75
1250 2830 12700 0.75
1600 3240 15400 0.75
2000 3820 18200 0.75
2500 4450 21800 0.75

Note:Due to continuous product improvement,the dimensions provided in this sample are for reference only.If necessary,our company can design and produce according to user requirements.

Application areas:

This product is widely used in power transmission and distribution systems, as well as in important locations such as hotels, airports, high-rise buildings, commercial centers, residential areas, and harsh environments like subways and smelting power plants.
