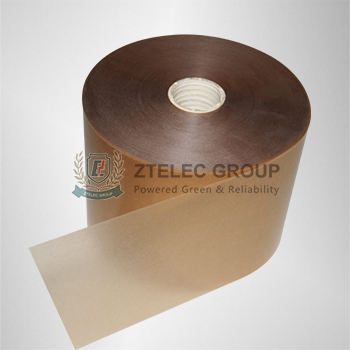

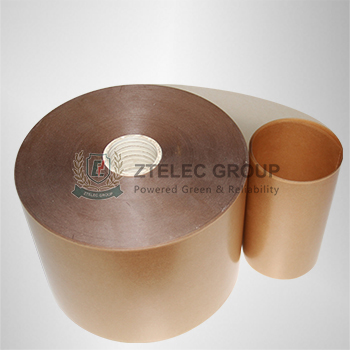

1.Procedure:PMP condenser paper is the combination of one mylar and two layers electrician insulation fiberpaper.
2.Usage: It is widely used in mutual inductor, transformer, coil-side insulation for small motors.
3.Characteristics: Perfect mechanical properity、excellent dielectric properity、good heat resistance.
| No. | Index Name | Unit | Index |
| 1 | Nominal Thickness | mm | 0.04-0.15 |
| 3 | Tensile Strength | N/10mm | ≥100 |
| 4 | Elongation | % | ≥50 |
| 5 | Breakdown Voltage | KV | ≥4-14 |
| 6 | Heat Resistance Grade | E 120℃ |
