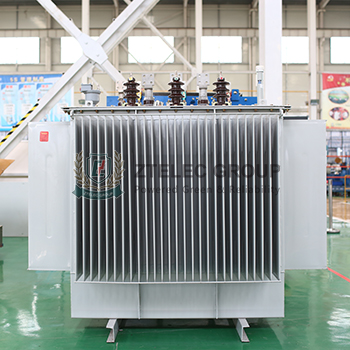

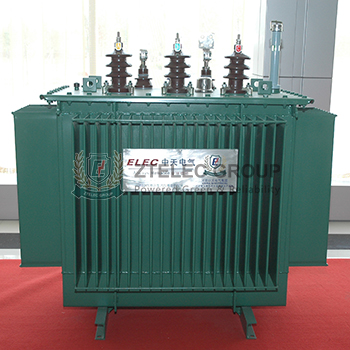

10KV Grade Amorphous Metal Oil-immersed Transformer S(B)H15-M-30~1600/10 series

Product Features Amorphous alloy is a kind of new energ … Continue reading 10KV Grade Amorphous Metal Oil-immersed Transformer S(B)H15-M-30~1600/10 series

Product Features

Amorphous alloy is a kind of new energy-saving material, whose metal atoms are arranged in disordered non-crystal sequence, which is totally different with the crystal structure of silicon steel. The former is much easier to be magnetized and demagnetized. The lamination is as thin as only 0.025mm, less than one-tenth of the thickness of ordinary laminating silicon steel. The application of this kind of new material makes the transformer core possess the features of high saturation magnetic induction, low loss, low magnetizing current, and excellent temperature stability. Having the advantages like low no-load loss, high short-circuit resistance, advanced structure, energy conservation and environmental protection.The amorphous alloy transformer is a kind of distribution transformer with ideal energy-saving effects.

10KV Grade Amorphous Metal Oil-immersed Transformer S(B)H15-M-30~1600/10 series
Rated Capacity
(KVA)
Voltage Combination Connection Method Loss(W) No Load Current(%) Impendence Voltage(%) Weight
(Kg)
Dimension(mm)
(L×W×H)
HV(KV) LV(KV) No Load Load
(75℃)
30 11

10.5

10

6.3

6

0.4 Dyn11

Yyn0

33 630/600 1.5 4 410 920×850×830
50 43 910/870 1.2 520 1040×780×870
63 50 1090/1040 1.1 570 1010×810×880
80 60 1310/1250 1.0 640 1060×830×910
100 75 1580/1500 0.9 750 1140×830×860
125 80 1890/1800 0.8 830 1110×880×950
160 100 2310/2200 0.6 940 1130×880×1000
200 120 2730/2600 0.6 1090 1240×900×1020
250 140 3200/3050 0.6 1250 1290×900×1070
315 170 3830/3650 0.5 4.5 1470 1380×840×1110
400 200 4520/4300 0.5 1710 1420×920×1250
500 240 5410/5150 0.5 1990 1360×1040×1180
630 320 6200 0.3 2390 1530×1120×1310
800 360 7500 0.3 2760 1880×1210×1360
1000 450 10300 0.3 3240 2040×1520×1360
1250 530 12000 0.2 3820 2140×1520×1430
1600 630 14500 0.2 4620 2260×1540×1500
