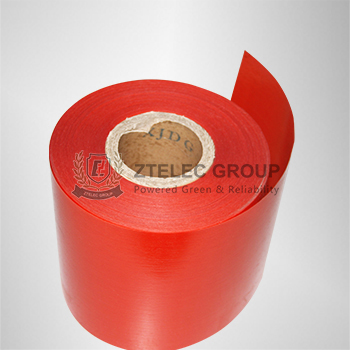

Epoxy Preimpregnated Material DMD

1. Insulation: Class-F/H 2. Producing procedure: Epoxy … Continue reading Epoxy Preimpregnated Material DMD


1. Insulation: Class-F/H
2. Producing procedure: Epoxy Resin Preimpregnated DMD is made by mylar and non-woven soft composite material immersed in class F resin.
3. Its temperature classification is F, high electrical and mechanical properties.
4. DMD epoxy preimpregnated material is widely used in insulation between layers of low voltage coil of dry type transformer and as the slot insulation and insulation between phases for F-grade motors.



No. Index Name Unit Index value
1 Nominal  thickness mm 0.16 0.18 0.2 0.23 0.25
2 Thickness tolerance mm ±0.030 ±0.030 ±0.035 ±0.035 ±0.035
3 Ration(±10%) g/m2 195 220 245 275 315
4 Tensile Strength(lengthways no bend) N/10mm ≥40 ≥70 ≥80 ≥100 ≥120
5 Electric intensity MV/m ≥40 ≥40 ≥40 ≥40 ≥40
6 Resin content % 35±5 35±5 30±5 30±5 30±5
7 Volatile content % ≤1.5
8 Thawing resin content % ≥90
9 Tensile/cutting strength Mpa ≥5.0
10 Temperature index(TI) ≥155℃
