Using non-alkali glass fiber cloth, impregnated with epoxy resin by hot pressing. It has high mechanical and electrical properties, good heat resistance and humidity resistance.

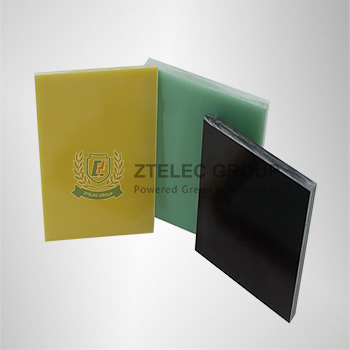

Epoxy glassfiber sheet 3240 EPGC201/202/203/204/306/308
Description
Using non-alkali glass fiber cloth, impregnated with epoxy resin by hot pressing. It has high mechanical and electrical properties, good heat resistance and humidity resistance. Products are widely used in mechanical, electronic, electrical equipment, insulation parts and components.
EPGC202/203/204/306/308 apply 7628 glass fiber cloth and imported epoxy resin, it has higher mechanical properties, electrical properties, high thermal mechanical strength.
|
Name |
IEC |
NEMA |
colour |
Main component |
Characteristics |
Heat resistance grade |
| 3240 | EPGC201 | Natural color | Non-Alkali fiberglass cloth, epoxy resin | Higher mechanical and electrical properties, better heat resistance, humidity resistance
Products are widely used in mechanical, electronic, electrical equipment, insulation parts and components |
B |
|
| EPGC202 |
FR-4 |
Natural color/green | Electronic use fiberglass cloth, imported epoxy resin, flame retardant | The performance is similar to that of EPGC201, and the flame retardancy is improved to UL F-V0 grade. It is suitable for the insulation structure of motor and electrical equipment with flame retardant requirements F class |
F |
|
| 341/3248 | EPGC203 |
G-10 |
Natural color/green | Electronic use fiberglass cloth and heat resistant epoxy resin | The performance is similar to that of EPGC201, but the heat resistance is improved, the mechanical strength is high at high temperature, the electrical property is excellent, and have anti static electricity ,,is applied to the insulation structure parts of transformer, high voltage switch and motor |
F |
| EPGC204 |
FR-5 |
Natural color/green | Electronic use fiberglass cloth, heat resistant epoxy resin, flame retardant | The performance is similar to that of EPGC203, and the flame retardancy is improved to UL F-V0 grade. It is suitable for the insulation structure parts of motor and electrical equipment with flame retardant requirements F class |
F |
|
| EPGC306 |
G-11 |
Natural color/green | Electronic use fiberglass cloth and heat resistant epoxy resin | The performance is similar to that of EPGC203, and the resistance index is improved. It is suitable for high voltage DC power transmission and transformation equipment, large hydro generator set and other F class electrical equipment insulation structure parts |
F |
|
| EPGC308 | Natural color/green | Electronic use fiberglass cloth and heat resistant epoxy resin | The performance is similar to EPGC203, which improves heat resistance, higher mechanical and electrical performance, stable mechanical energy under high temperature, and is suitable for H class transformer and motor insulation structure parts |
H |
