Application of phenolic cotton laminate

Phenolic laminated cloth board is made of cotton cloth … Continue reading Application of phenolic cotton laminate

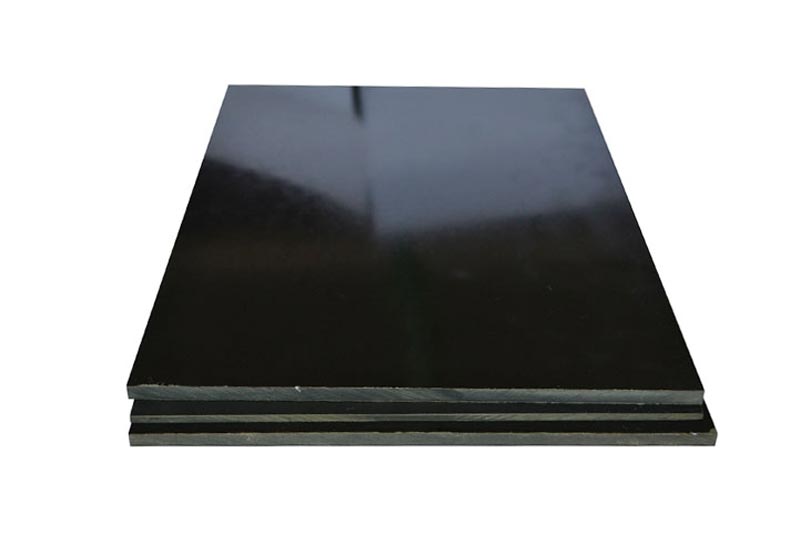

Phenolic laminated cloth board is made of cotton cloth soaked with phenolic resin by baked and hot pressed.Heat resistance grade E.High mechanical properties, oil resistance and certain dielectric properties.It is suitable for insulating structural parts in machinery, motor and electrical equipment which can be used in transformer oil.

3136 is a laminated cloth bleached with phenolic resin.3025 has high mechanical properties that suitable for insulation structure parts in machinery, motor and electrical equipment which can be used in transformer oil.3136 has high mechanical strength, suitable for rubber gear bush, guide wheel and other mechanical parts.

Phenolic laminated paper cloth board has high mechanical strength, good moisture resistance, heat resistance, good electrical properties and easy processing that widely used in electrical products.The density of bakable laminated paper and cloth sheets is about 1.35g/ ★ cubed, which is half of the weight of aluminum. It is used in many aviation and other structures.

Phenolic laminated products are resistant to chemical corrosion, organic solvents, organic acids and dilute inorganic acids, suitable for many chemical equipment, generally not suitable for alkaline media.

Phenolic laminated cloth is made of phenolic resin soaked, hot rolled and heat-resistant cotton cloth.High mechanical properties, oil resistance and certain dielectric properties.Suitable for insulating structural parts of machinery, motor, electrical equipment and transformer oil.

The 3136 is a laminated cloth bleached with phenolic resin.3025 has high mechanical properties, suitable for insulating structural parts of machinery, motors and electrical equipment, can be used in transformer oil.

Phenolic laminated paper cloth board has high mechanical strength, good moisture resistance, good heat resistance, good electrical properties, easy to process, widely used in electronic products.The density of bakable laminated paper and cloth sheets is about 1.35g/cubic, which is half the weight of aluminum.It is used in many aviation and other structures.

Phenolic laminated products are resistant to chemical corrosion, organic solvents, organic acids and dilute inorganic acids, suitable for many chemical equipment, generally not suitable for alkaline media.

Laminating board can withstand saws, drills, cars, milling, planing and other processing, processing should not appear cracks and slag, the thickness of less than 3mm can be stamping processing, cold stamping does not heat, general models need to preheat after punching.Insulation parts for high and low voltage motor and electronic industry.

The processing performance of cloth board is better than paperboard and glass cloth board, the bonding strength and impact strength are higher than paperboard, but the water absorption rate is large, after the moisture absorption, the electrical insulation is reduced, easy to moldy, not suitable for hot and humid places to use.Therefore, it is often used as the insulation structure parts of low-voltage electrical appliances, such as gaskets, slot wedges, screws and so on.Glass cloth board is kind very much its performance follows the distinction of adhesive resin and all sorts of different glass cloth board and other laminates likewise, have higher mechanical strength and heat resistance, under the action of high temperature, although its bending resistance, tensile resistance and impact strength has been reduced, but still is higher than coated paper board and coated cloth board.
