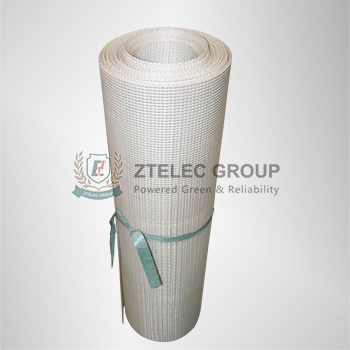

Vacuum Grid Cloth

1.Producing procedure: The special loom makes glass fiber yarn and polyster silk into a grid fabric. 2.Grid fabric immersed with specific epoxy resin 3.Drying by dedicated dryer. 4.Curing and slitting. Not only adopt good raw material but also use unique formula and advanced technology which makes the griding cloth with high insulating grade and without … Continue reading Vacuum Grid Cloth

1.Producing procedure: The special loom makes glass fiber yarn and polyster silk into a grid fabric.
2.Grid fabric immersed with specific epoxy resin
3.Drying by dedicated dryer.
4.Curing and slitting.
Not only adopt good raw material but also use unique formula and advanced technology which makes the griding cloth with high insulating grade and without bubble inside. Its heat resistance standard can reach class F and class H which can keep nice mechanical characteristic under the hot environment.
1. Prefered standard thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.6mm, 1.9mm, 2mm, 2.4mm
2. Prefered standard nominal mesh size: 5mm x 4mm, 10mm x 8mm.
3. Prefered width: 1000mm
4. Size can be customized as per customer’s special requirement.

No. Item Unit Spec.
1 Standard length of one roll(±0.5m) m 400-100
2 Width m 0.2-1.2
3 Mesh size(meridian x parallel ) mm 5mm x 4mm, 10mm x 7mm
4 Regisn content % 12–20
5 Tensile break load n ≥1600
6 Bend break load n ≥30
7 Breakdown Voltage kv ≥18
8 Insulation resistance Ω ≥1±1013
