What is enamelled wire

The enamelled wire is the main breed of winding wire. It is made of insulation layer and conductor. The bare wire are painted and baked after annealing and softening. It is not easy to make a product which is to meet standard request and customer requirement. It is affected by raw material quality,process parameters,production equipment … Continue reading What is enamelled wire

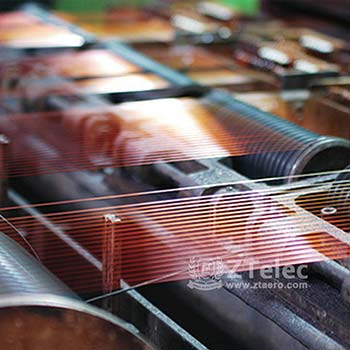

The enamelled wire is the main breed of winding wire. It is made of insulation layer and conductor. The bare wire are painted and baked after annealing and softening. It is not easy to make a product which is to meet standard request and customer requirement. It is affected by raw material quality,process parameters,production equipment and environment factors. So the different enamelled wire with different quality characteristic but they need to be with mechanical properties, chemical properties,electric properties and thermal properties. In short the enamelled wire is a copper wire covered with an insulator that often plastic.

The enamelled wire is the main raw material of electrical machinery, household appliance. In recently years the electric power industry has achieved sustained and rapid growth. The rapid growth of household appliance bring a broader field to the application of enamelled wire. At the same time the market has a higher requirement of enamelled wire. It is inevitable to adjust the product structure of enamelled wire which the raw materials, enameling process, process equipment and testing means are also urgently needed to be developed and researched.

Enamelled wire is made by coating a layer of insulating paint on the conductor with high purity and high conductivity, that is, conductor + insulating paint = non-self-sticking enameled wire

conductor + insulating paint + adhesive layer = self-sticking enameled wire.

Different customers have different requirements, so we can choose different standard wire

1,PEI (polyethylene imine Polyester enamelled wire) — — — — — – Polyester – imide resin as the main body of the grease for insulating film in the conductor of the lacquer that bake;Its heat resistance grade is 180℃(H grade).

2, UEW (poly (amino formic acid ester enameled wire) — — — — — – Polyester – thane resin as the main body of the grease for insulating film in the conductor of the lacquer that bake;Its maximum characteristics are direct solder and heat resistance of 130℃(grade B).

3, the PEW (Polyester enamelled wire) — — — — — – with Polyester resin as the main body fat for insulating film in the conductor of the lacquer that bake;Its heat resistance rating is 155℃(grade F)

4, AIW(polyimide enameled wire)—— — take polyamide-imide resin as the main body grease for insulation skin film baking paint on the conductor. Its heat resistance grade is 200℃(H+ grade)
